5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System

Shenzhen GreFlow Energy Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System from wholesalers

    Buy cheap 5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System from wholesalers
    • Buy cheap 5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System from wholesalers
    • Buy cheap 5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System from wholesalers
    • Buy cheap 5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System from wholesalers
    • Buy cheap 5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System from wholesalers
    • Buy cheap 5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System from wholesalers

    5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System

    Ask Lasest Price
    Brand Name : Amazing Energy
    Model Number : 5KWh Solar Panels Battery 51.2v 100Ah
    Certification : MSDS UN38.3
    Price : inquiry us
    Payment Terms : T/T, L/C
    Supply Ability : 200 per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System

    5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System
    Descriptions of 5KWh Solar Panels Battery 51.2v 100Ah

    Technical specification
    Battery TypeLiFePo4 (Lithium Iron Phosphate Battery)
    Norminal Voltage (V)51.2V
    Norminal Energy (KWh)5.12KWH
    Design Capacity100Ah
    Design Life15 Years

    Product Size
    Size600*510*173MM
    Weight51KG

    Technical Parameters
    Cycle life> 6000 times 80% DOD
    Operating Voltage Range40V- 58.4V
    Charging VoltageDC 58.4V
    Charging/Discharging Current (A)Same Port 100A
    Internal Resistance<30mΩ

    BMS Parameters
    Self-Consumption<2W
    Rated Voltage51.2V
    Balance Current30-65 (mA)
    Communication MethodCAN / RS485 / RS232
    Information Storage500 Strip
    Charging limiting Currentcan be set through upper computer

    Ambient Temperature
    Operating Temperature-10°C ~ 50°C
    Storage Temperature10°C ~ 50°C
    Humidity15% ~ 75%

    Warranty
    Warranty time5 Years

    The features of 5KWh Solar Panels Battery 51.2v 100Ah
    • Long cycle life
    • No memory effect
    • High energy density
    • Pollution-free
    • High discharge rate
    • Light weight

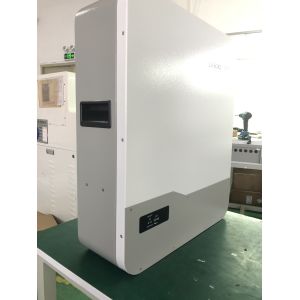

    The detail Images of 5KWh Solar Panels Battery 51.2v 100Ah
    5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System
    5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System


    Product Size of 5KWh Solar Panels Battery 51.2v 100Ah

    5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System

    Product Interface:

    5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System

    Paralles Connection of Batteries
    Connect the positive pole with positive pole in parallel, and the negative pole with negative pole in parallel, as shown in the figure below.


    Solution Diagram

    Compatible with these Inverter brands of Energy Storage Battery 5Kwh LiFePo4 48V 100Ah battery
    5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System


    What is a solar battery and how does it work?
    Solar panels make more electricity during the middle of the day than they do at any other time.
    The middle of the day also happens to be when homes use the least amount of electricity. Because of this, your solar panels will produce a lot of electricity in the afternoon that you won’t need.
    Solar batteries are able to store that extra solar energy so you can use it later on.
    Solar powerwall batteries are able to store that extra solar energy so you can use it later on. This lets you power your home on clean renewable energy from your solar panels, even when they aren’t producing electricity.
    What’s great about installing a solar powerwall battery is that it allows you to be less reliant on the grid while ensuring you have access to reliable backup power when there’s a power outage.
    Features of LiFePO4 Battery compare with Lead acid Batteries:
    Longer Cycle Life: Offers a significant longer cycle life and longer float/calendar life than lead acid batteries helping to minimize replacement cost and reduce total cost of ownership.
    Higher Power:Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity.
    BMS Protection: Under/Over voltage and current protection ensuring safe and efficient operation.
    Charging: Designed to work with AGM chargers.
    Safety: Advanced LiFePO4 cell design includes various safeguards including high temp thermal fuse, flame retardant additive and pressure relief valves.
    Increased Flexibility: Battery Specialist LiFePO4 batteries are a "drop-in replacement" of lead acid batteries.

    The Package of ES-BOX2 Energy Storage Battery 5Kwh LiFePo4 48V 100Ah battery
    The product size of 5KW model: 68*58*19.5MM
    The weight with package of 5KW model: 93KG
    The Size of pallet: 116*80 MM
    12pcs each pallet.
    5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System

    We have 10KW model 51.2V or 48V 200Ah in choose too, freely inquiry our sales for details

    5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System


    the Shipping Method of ES-BOX2 Energy Storage Battery 5Kwh LiFePo4 48V 100Ah battery


    You can choose DHL, Fedex UPS to door if it is urgent

    You can choose By sea to door for sample and not urgent

    For batch order you can choose by sea to port

    We have MSDS, UN38.3 test report for kinds shipping ways.


    Quality 5KWh Solar Panels Battery 51.2v 100Ah For Home Solar Generator System for sale
